inverter hkva

》Technical Specifications ▪︎Capacity : 10000 VA (10 kVA) ▪︎Maximum : Load 8000 W ▪︎Voltage Support : 120V ▪︎Technology : Pure Sine Wave ▪︎Battery Support :10 Batteries (12V each) ▪︎Compatible Batteries : Flat, Tubular, and SMF (80Ah–250Ah) ▪︎Charging Current : User settable (8A–21A) ▪︎Dimensions : 55.5 x 30 x 60 cm ▪︎Net Weight : 80 kgs ▪︎Warranty : 3 Years 》Key Features ▪︎Intelligent LCD Display: Shows 8 to 14 real-time performance statistics, including backup time, charging time, running load status, and fault indications. ▪︎Flexible Performance Modes: Includes Eco Mode (140V–290V AC) for wider voltage range and UPS Mode (180V–265V AC) for sensitive appliances with changeover times under 20ms. ▪︎User Control: Allows setting output voltage between 200V and 240V to balance performance and backup time. ▪︎Safety Features: Equipped with a mains bypass switch and alarms for short circuits, overloads, over-temperature, and low battery.

》Technical Specifications ▪︎VA Rating : 7500 VA (7.5 kVA) ▪︎Max Bulb Load : 6000 W ▪︎Technology : Pure Sine Wave ▪︎System Voltage : 96V DC ▪︎No. of Batteries : 8 (12V each) ▪︎Max Charging Current : 21 Amp (User settable: 8A–21A) ▪︎Output Voltage : User settable (200V–240V) ▪︎Change Over Time : < 20ms (in UPS and ECO modes) ▪︎Dimensions (cm) : 55.5 x 30 x 60 ▪︎Net Weight : 65 kg ▪︎Warranty : 3 Years 》Key Performance Features ▪︎Intelligent LCD Display: Provides real-time statistics, including backup time, charging time, running load percentage, and fault alerts. ▪︎Dual Modes: °UPS Mode: Keeps output voltage between 180V–265V, ideal for sensitive appliances like computers. °Eco Mode: Widens the voltage range to 140V–290V to reduce battery usage when grid power is stable. ▪︎Advanced Protection: Includes a mains bypass switch for continued power during inverter faults and MCB protection against short circuits, overloads, and overheating. Battery Compatibility: Supports Flat Plate, Tubular, and SMF (Sealed Maintenance Free) batteries with capacities ranging from 80Ah to 250Ah.

The Luminous Optimus 6500+ is a high-capacity (HKVA) pure sine wave inverter designed for heavy loads in large residences, offices, or commercial spaces. 》Technical Specifications Overview ▪︎VA Rating: 5500 VA (5.5 KVA) ▪︎Maximum Peak Load: 4400 W (bulb load capacity often cited as 3800 W) ▪︎Battery System: 72V DC (Requires 6 batteries of 12V each) ▪︎Output Voltage: User-settable between 200V – 240V to balance backup time vs. performance ▪︎Technology: Microcontroller-based Pure Sine Wave for safe operation of sensitive electronics. 》Detailed Data Sheet ▪︎Charging Current : User-settable between 8A – 21A for optimized battery life ▪︎Battery Compatibility : Supports Flat, Tubular, and SMF batteries (80Ah – 250Ah) ▪︎Operating Modes : Eco Mode (85V – 290V) and UPS Mode (180V – 265V) ▪︎Change Over Time : <20ms (UPS mode) ▪︎Safety Protections : Short circuit, Overload, Over temperature, Low battery, and Mains MCB protection ▪︎Display LCD showing real-time stats: backup time, charging time, load %, and fault alerts ▪︎Physical Dimensions : 30 x 47.1 x 45.2 cm ▪︎Net Weight Approx. : 31.5 kg ▪︎Warranty : 3Years 》Key Features ▪︎Fast Charging: Begins at low input voltage (95V) and offers fast charging from 135V. ▪︎Mains Bypass Switch: Allows the grid power to pass directly to the load in case of an internal inverter fault. ▪︎Load Capability: Can power heavy appliances like 1.5-ton air conditioners, refrigerators, and multiple office computers.

》Technical Specifications ▪︎VA Rating : 5000 VA (5 KVA) ▪︎Rated Power : (Wattage) 4000 W ▪︎System Voltage : 48V (Requires four 12V batteries) ▪︎Technology : Pure Sine Wave ▪︎Charging Current : User settable between 8A – 21A ▪︎Output Voltage : User selectable between 200V – 240V ▪︎Input Voltage (Charging) : Low voltage starts at 95V; Fast charging from 135V ▪︎Changeover Time : < 20 ms in both UPS and ECO modes ▪︎Dimensions (cm) : 30 x 36.7 x 42.9 ▪︎Net Weight : 36 kg 》Key Features ▪︎Informative LCD Display: Shows 8 real-time performance statistics, including remaining backup time, charging time, load percentage, and fault alerts. ▪︎Dual Operating Modes: °UPS Mode: Keeps output voltage between 180V–265V, ideal for sensitive electronics like computers. °Eco Mode: Operates in a wider voltage range (140V–290V) to reduce battery usage when the grid is stable. ▪︎Battery Compatibility: Supports all battery types, including Flat Plate, Tubular, and SMF (VRLA), with capacities ranging from 80Ah to 250Ah. ▪︎Safety Protections: Features built-in protection against short circuits, overloads, over-temperature, and deep discharge. ▪︎Mains Bypass Switch: Allows for direct grid supply to the load in the event of an inverter fault. ▪︎Warranty : 3 Years

》Core Technical Specifications ▪︎Rated Capacity : 4000 VA (4 kVA) ▪︎Running Load (Wattage) : 2850 W ▪︎Output Waveform: Pure Sine Wave ▪︎Battery System : 48V (Requires four 12V batteries) ▪︎Charging Current : User settable between 8A – 21A ▪︎Output Voltage : User settable between 200V – 240V ▪︎Change Over Time : < 10 ms (suitable for sensitive equipment) ▪︎Efficiency : > 90% 》Key Features ▪︎Informative LCD Display: A state-of-the-art panel showing real-time statistics such as battery level, backup time remaining at current load, running load status, and fault indications. Operating Modes: °UPS Mode: Maintains output voltage between 180V–265V AC for sensitive electronic devices. °Eco Mode: Operates in a wider input voltage range (140V–290V AC) to save energy when sensitive electronics aren't in use. ▪︎Battery Compatibility: Supports all battery types including Flat, Tubular, and SMF with capacities ranging from 80Ah to 250Ah. ▪︎Safety Protections: Built-in alarms and protections against short circuits, overload, over-temperature, and low battery. ▪︎Mains Bypass Switch: Allows for direct power supply from the grid in case of an inverter fault.  》Physical & Warranty Information ▪︎Dimensions: 30 x 47.1 x 45.2 cm. ▪︎Net Weight: 31.5 kg. ▪︎Warranty: 3 Years

》Technical Specifications ▪︎VA Rating : 4000 VA (4 KVA) ▪︎Maximum Load (Wattage) : 3200 Watts ▪︎System Voltage : 36V (3 x 12V Batteries) ▪︎Output Technology : Pure Sine Wave ▪︎Charging Current : User settable (8A – 21A) ▪︎Output Voltage : User settable (200V – 240V) ▪︎Battery Compatibility : Flat, Tubular, & SMF (80Ah – 250Ah) ▪︎Transfer Time : < 20 milliseconds ▪︎Dimensions (cm) : 30 x 36.7 x 42.9 ▪︎Net Weight : ~36 kg ▪︎Key Features & Performance ▪︎Informative LCD Display: Shows real-time statistics including remaining backup time, load percentage, battery charging status, and fault alerts. ▪︎Dual Operating Modes: °UPS Mode: Keeps output voltage between 180V – 265V for sensitive electronics. °Eco Mode: Operates between 140V – 290V to save energy and extend backup. ▪︎Intelligent Charging: Supports low voltage charging starting from 95V and fast charging from 135V input. ▪︎Safety Protections: Built-in alarms and protection for short circuits, over-temperature, overload, and deep battery discharge. ▪︎Bypass Switch: Includes a manual bypass switch that allows grid power to flow directly to appliances in case of an inverter fault.

》Key Features & Specifications (Datasheet Summary): ▪︎Capacity: 3500 VA / 36V, Rated power 2800W. ▪︎Battery Requirement: 3 x 12V batteries (supports Flat, Tubular, SMF). ▪︎Technology: Pure Sine Wave. ▪︎Display: Advanced LCD showing real-time battery statistics and faults. ▪︎Charging System: Fast battery charging with user-settable current (8A-21A). ▪︎Protection: Overload, short circuit, over-temperature, and low battery alerts. ▪︎Modes: Eco/UPS mode selectable. ▪︎Weight : Approx. 31.5 Kg ▪︎Dimensions: 30 X 41.7 X 45.2 cm. 》Performance Highlights: ▪︎Low Voltage Charging: Starts charging at low voltage (95V). ▪︎Warranty: 3 Years standard warranty

》Key Technical Specifications ▪︎VA Rating : 3000 VA (3 kVA) ▪︎System Voltage : 24V (Supports 2 x 12V batteries) ▪︎Technology : Pure Sine Wave ▪︎Max Charging Current : User-adjustable: 8A – 21A ▪︎Output Voltage : User-selectable: 200V – 240V ▪︎Battery Compatibility : Tubular, Flat Plate, SMF (Recommended: 125Ah – 250Ah) ▪︎Dimensions : (L×W×H) 30 cm × 29.1 cm × 28.4 cm ▪︎Net Weight ~24 kg ▪︎Warranty : 3 Years 》Advanced Features ▪︎LCD Display: An advanced FDD (Front Dashboard Display) showing real-time stats like backup time, charging time, load percentage, and fault alerts. ▪︎Mains Bypass Switch: Allows the grid to power the load directly if the inverter develops a fault, avoiding wiring changes. ▪︎Low Voltage Charging: Starts charging at an input voltage as low as 95V. ▪︎Dual Operating Modes: Features an Eco Mode for extended battery life and a UPS Mode for protecting sensitive electronics like computers and printers. ▪︎Comprehensive Protections: Includes safeguards against overload, short circuits, deep discharge, over-temperature, and low battery. 》Running Load ▪︎This inverter is capable of supporting heavy appliances, including: °LED TVs and home theatre systems. °Refrigerators and air coolers. °Computers, printers, and networking equipment.

》Technical Specifications ▪︎Capacity (VA) : 2500 VA ▪︎Rated Power (Watts) : 2000 W ▪︎Output Waveform : Pure Sine Wave ▪︎Battery System : 24V (Supports 2x 12V batteries) ▪︎Battery Types: Flat, Tubular, and SMF (80Ah–250Ah) ▪︎Charging Current User selectable: 8A to 21A ▪︎Efficiency ~90% ▪︎Dimensions (cm): 30 x 32.6 x 28.4 ▪︎Net Weight : 22.5 kg ± 3% 》Key Performance Features ▪︎Advanced LCD Display: Shows real-time statistics including battery charging time, backup time at current load, and fault indications. ▪︎Operating Modes: Features a mode selector for UPS mode (narrow range: 180V–265V) for sensitive electronics and Eco mode (wide range: 85V–290V) for standard appliances. ▪︎Flexible Output: Allows users to choose output voltage between 200V–240V to balance performance with backup duration. ▪︎Fast Charging: Battery charging starts at input voltages as low as 95V, with fast charging beginning at 135V. ▪︎Mains Bypass Switch: In case of an inverter fault, this manual switch allows the connected load to run directly from the grid.

》Core Technical Specifications ▪︎VA Rating: 2000 VA. ▪︎Rated Power (Maximum Load): 1600 Watts. ▪︎Technology: Pure Sine Wave (suitable for sensitive electronics like laptops and LED TVs). ▪︎System Voltage: 24V DC. ▪︎Efficiency: ~90%. ▪︎Dimensions (L x W x H): 30 x 32.6 x 28.4 cm. ▪︎Net Weight: ~21 kg. 》Input & Output Management ▪︎Eco Mode Voltage: 85V – 290V AC (wide range for fluctuating grids). ▪︎UPS Mode Voltage: 180V – 265V AC (narrow range to protect sensitive appliances). ▪︎Output Voltage: User selectable between 200V and 240V to balance performance and backup time. ▪︎Change Over Time: < 20 ms in Narrow (UPS) mode; < 30 ms in Wide (Eco) mode. 》Battery & Charging Features ▪︎Supported Batteries: 2 units of 12V (Flat, Tubular, or SMF). ▪︎Recommended Capacity: 80 Ah to 250 Ah. ▪︎Charging Current: User selectable from 8A to 21A for optimized battery health. ▪︎Low Voltage Charging: Commences at input voltages as low as 95V. 》User Interface & Protection ▪︎LCD Display: Shows real-time statistics including backup time, charging time, load percentage, and fault indications. ▪︎Mains Bypass Switch: Allows the grid to supply power directly to appliances if the inverter develops a fault. ▪︎Safety Protections: Includes protections for short circuits, overloads, deep discharge, and over-temperature.

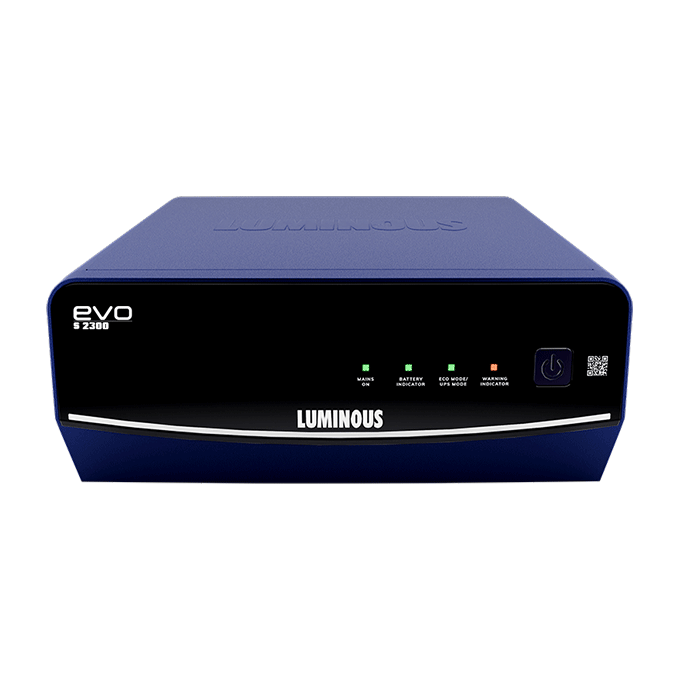

》Key Technical Specifications for EVO S 2300 ▪︎Capacity: 2000 VA / 24V (supports 2x 12V batteries) ▪︎Max Load: 1600W ▪︎Output Waveform: Pure Sine Wave ▪︎Charging Technology: High-efficiency charging with Low Voltage Fast Charging (LVFC) ▪︎Input Voltage Range (Eco Mode): 85 - 290 VAC ▪︎Input Voltage Range (UPS Mode): 180 - 265 VAC ▪︎Dimensions: ~40.0 x 31.1 x 15.2 cm ▪︎Net Weight: 17.9 Kgs (+/- 3Kgs) ▪︎Warranty: 36 Months 》Key Features ▪︎Modes: Dedicated UPS mode for sensitive appliances and Eco mode for wider voltage ranges. ▪︎Safety: Integrated Mains MCB to protect against input faults. ▪︎Indications: User-friendly LED indicators for battery charging, UPS/Eco mode, and fault alerts
