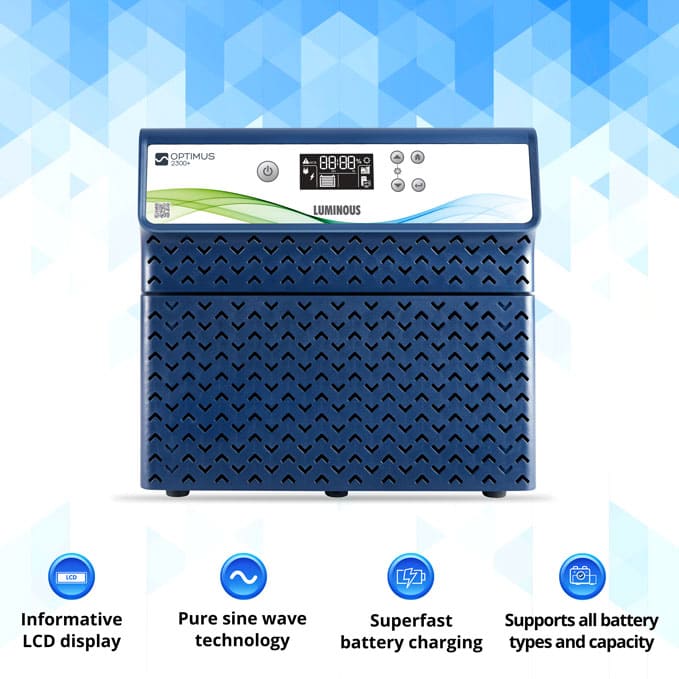

Optimus 2300+ / 24V / 2KVA

》Core Technical Specifications

▪︎VA Rating: 2000 VA.

▪︎Rated Power (Maximum Load): 1600 Watts.

▪︎Technology: Pure Sine Wave (suitable for sensitive electronics like laptops and LED TVs).

▪︎System Voltage: 24V DC.

▪︎Efficiency: ~90%.

▪︎Dimensions (L x W x H): 30 x 32.6 x 28.4 cm.

▪︎Net Weight: ~21 kg.

》Input & Output Management

▪︎Eco Mode Voltage: 85V – 290V AC (wide range for fluctuating grids).

▪︎UPS Mode Voltage: 180V – 265V AC (narrow range to protect sensitive appliances).

▪︎Output Voltage: User selectable between 200V and 240V to balance performance and backup time.

▪︎Change Over Time: < 20 ms in Narrow (UPS) mode; < 30 ms in Wide (Eco) mode.

》Battery & Charging Features

▪︎Supported Batteries: 2 units of 12V (Flat, Tubular, or SMF).

▪︎Recommended Capacity: 80 Ah to 250 Ah.

▪︎Charging Current: User selectable from 8A to 21A for optimized battery health.

▪︎Low Voltage Charging: Commences at input voltages as low as 95V.

》User Interface & Protection

▪︎LCD Display: Shows real-time statistics including backup time, charging time, load percentage, and fault indications.

▪︎Mains Bypass Switch: Allows the grid to supply power directly to appliances if the inverter develops a fault.

▪︎Safety Protections: Includes protections for short circuits, overloads, deep discharge, and over-temperature.
