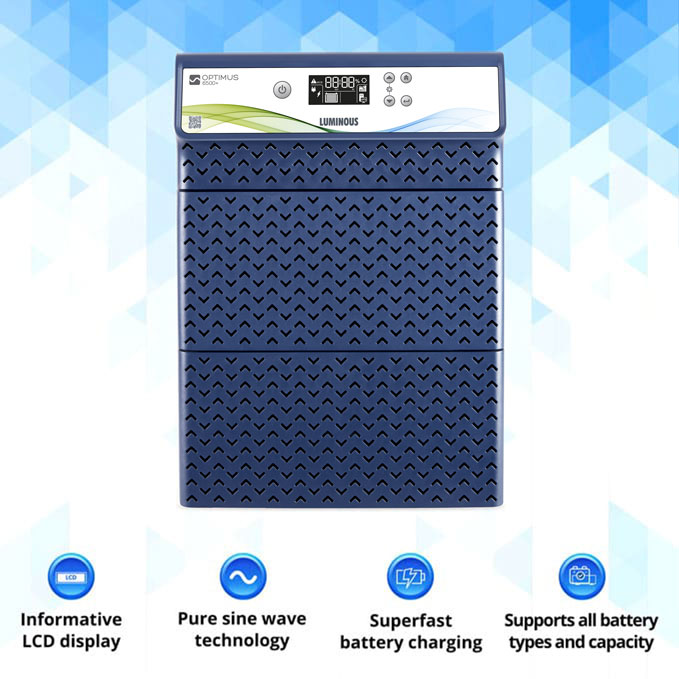

Optimus 6000+ / 48V / 5KVA

》Technical Specifications

▪︎VA Rating : 5000 VA (5 KVA)

▪︎Rated Power : (Wattage) 4000 W

▪︎System Voltage : 48V (Requires four 12V batteries)

▪︎Technology : Pure Sine Wave

▪︎Charging Current : User settable between 8A – 21A

▪︎Output Voltage : User selectable between 200V – 240V

▪︎Input Voltage (Charging) : Low voltage starts at 95V; Fast charging from 135V

▪︎Changeover Time : < 20 ms in both UPS and ECO modes

▪︎Dimensions (cm) : 30 x 36.7 x 42.9

▪︎Net Weight : 36 kg

》Key Features

▪︎Informative LCD Display: Shows 8 real-time performance statistics, including remaining backup time, charging time, load percentage, and fault alerts.

▪︎Dual Operating Modes:

°UPS Mode: Keeps output voltage between 180V–265V, ideal for sensitive electronics like computers.

°Eco Mode: Operates in a wider voltage range (140V–290V) to reduce battery usage when the grid is stable.

▪︎Battery Compatibility: Supports all battery types, including Flat Plate, Tubular, and SMF (VRLA), with capacities ranging from 80Ah to 250Ah.

▪︎Safety Protections: Features built-in protection against short circuits, overloads, over-temperature, and deep discharge.

▪︎Mains Bypass Switch: Allows for direct grid supply to the load in the event of an inverter fault.

▪︎Warranty : 3 Years
