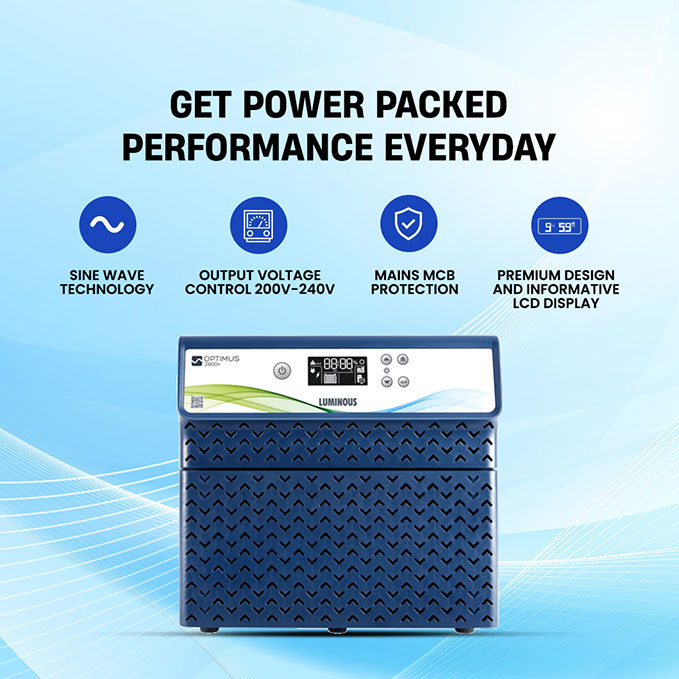

Optimus 2800+ / 24V / 2KVA

》Technical Specifications

▪︎Capacity (VA) : 2500 VA

▪︎Rated Power (Watts) : 2000 W

▪︎Output Waveform : Pure Sine Wave

▪︎Battery System : 24V (Supports 2x 12V batteries)

▪︎Battery Types: Flat, Tubular, and SMF (80Ah–250Ah)

▪︎Charging Current User selectable: 8A to 21A

▪︎Efficiency ~90%

▪︎Dimensions (cm): 30 x 32.6 x 28.4

▪︎Net Weight : 22.5 kg ± 3%

》Key Performance Features

▪︎Advanced LCD Display: Shows real-time statistics including battery charging time, backup time at current load, and fault indications.

▪︎Operating Modes: Features a mode selector for UPS mode (narrow range: 180V–265V) for sensitive electronics and Eco mode (wide range: 85V–290V) for standard appliances.

▪︎Flexible Output: Allows users to choose output voltage between 200V–240V to balance performance with backup duration.

▪︎Fast Charging: Battery charging starts at input voltages as low as 95V, with fast charging beginning at 135V.

▪︎Mains Bypass Switch: In case of an inverter fault, this manual switch allows the connected load to run directly from the grid.
