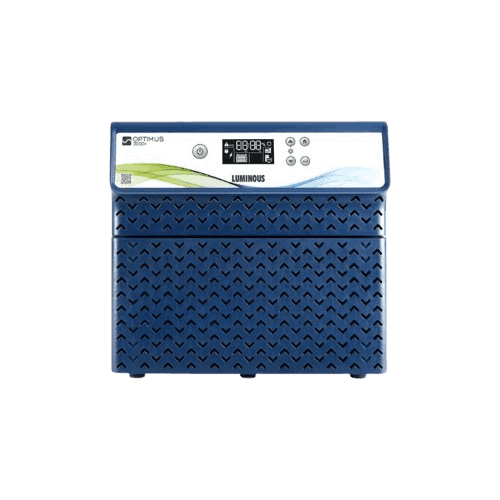

Optimus 3500+ / 24V / 3KVA
Description
》Key Technical Specifications
▪︎VA Rating : 3000 VA (3 kVA)
▪︎System Voltage : 24V (Supports 2 x 12V batteries)
▪︎Technology : Pure Sine Wave
▪︎Max Charging Current : User-adjustable: 8A – 21A
▪︎Output Voltage : User-selectable: 200V – 240V
▪︎Battery Compatibility : Tubular, Flat Plate, SMF (Recommended: 125Ah – 250Ah)
▪︎Dimensions : (L×W×H) 30 cm × 29.1 cm × 28.4 cm
▪︎Net Weight ~24 kg
▪︎Warranty : 3 Years
》Advanced Features
▪︎LCD Display: An advanced FDD (Front Dashboard Display) showing real-time stats like backup time, charging time, load percentage, and fault alerts.
▪︎Mains Bypass Switch: Allows the grid to power the load directly if the inverter develops a fault, avoiding wiring changes.
▪︎Low Voltage Charging: Starts charging at an input voltage as low as 95V.
▪︎Dual Operating Modes: Features an Eco Mode for extended battery life and a UPS Mode for protecting sensitive electronics like computers and printers.
▪︎Comprehensive Protections: Includes safeguards against overload, short circuits, deep discharge, over-temperature, and low battery.
》Running Load
▪︎This inverter is capable of supporting heavy appliances, including:
°LED TVs and home theatre systems.
°Refrigerators and air coolers.
°Computers, printers, and networking equipment.
