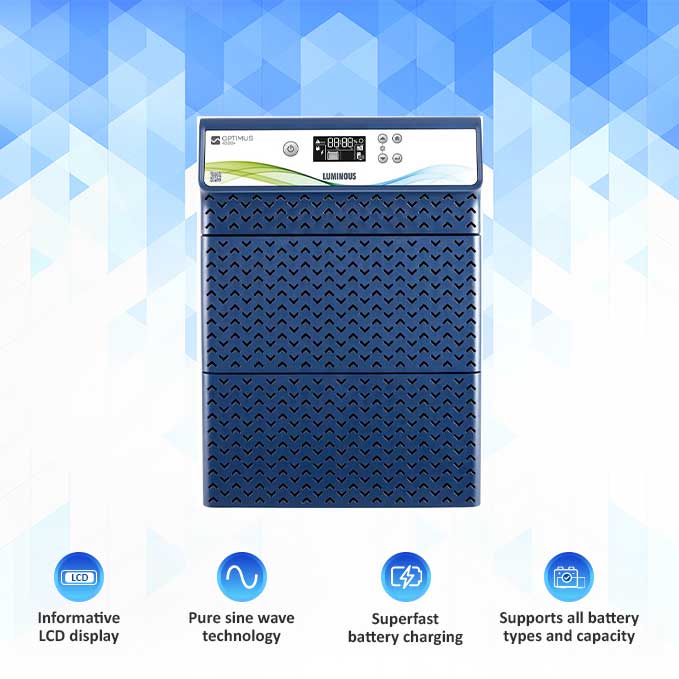

Optimus 4300+ / 36V / 4KVA

》Technical Specifications

▪︎VA Rating : 4000 VA (4 KVA)

▪︎Maximum Load (Wattage) : 3200 Watts

▪︎System Voltage : 36V (3 x 12V Batteries)

▪︎Output Technology : Pure Sine Wave

▪︎Charging Current : User settable (8A – 21A)

▪︎Output Voltage : User settable (200V – 240V)

▪︎Battery Compatibility : Flat, Tubular, & SMF (80Ah – 250Ah)

▪︎Transfer Time : < 20 milliseconds

▪︎Dimensions (cm) : 30 x 36.7 x 42.9

▪︎Net Weight : ~36 kg

▪︎Key Features & Performance

▪︎Informative LCD Display: Shows real-time statistics including remaining backup time, load percentage, battery charging status, and fault alerts.

▪︎Dual Operating Modes:

°UPS Mode: Keeps output voltage between 180V – 265V for sensitive electronics.

°Eco Mode: Operates between 140V – 290V to save energy and extend backup.

▪︎Intelligent Charging: Supports low voltage charging starting from 95V and fast charging from 135V input.

▪︎Safety Protections: Built-in alarms and protection for short circuits, over-temperature, overload, and deep battery discharge.

▪︎Bypass Switch: Includes a manual bypass switch that allows grid power to flow directly to appliances in case of an inverter fault.
