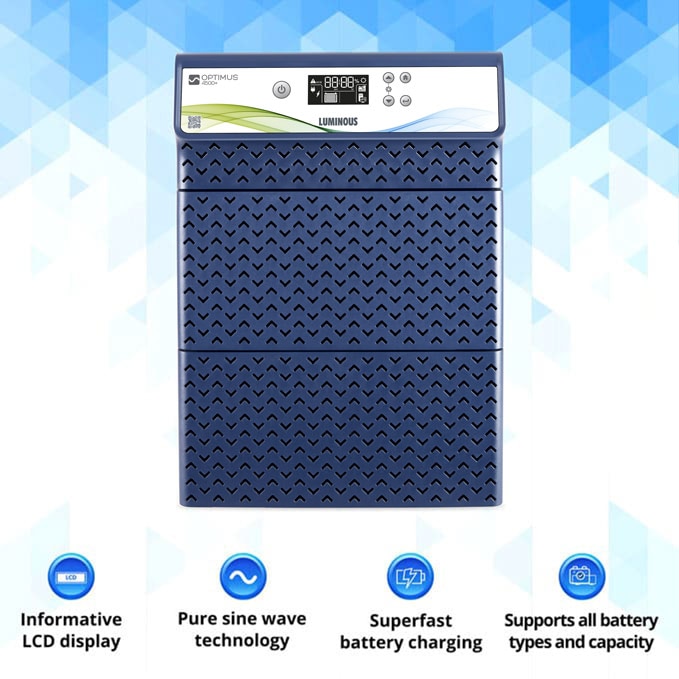

Optimus 4500+ / 48V / 4KVA

》Core Technical Specifications

▪︎Rated Capacity : 4000 VA (4 kVA)

▪︎Running Load (Wattage) : 2850 W

▪︎Output Waveform: Pure Sine Wave

▪︎Battery System : 48V (Requires four 12V batteries)

▪︎Charging Current : User settable between 8A – 21A

▪︎Output Voltage : User settable between 200V – 240V

▪︎Change Over Time : < 10 ms (suitable for sensitive equipment)

▪︎Efficiency : > 90%

》Key Features

▪︎Informative LCD Display: A state-of-the-art panel showing real-time statistics such as battery level, backup time remaining at current load, running load status, and fault indications.

Operating Modes:

°UPS Mode: Maintains output voltage between 180V–265V AC for sensitive electronic devices.

°Eco Mode: Operates in a wider input voltage range (140V–290V AC) to save energy when sensitive electronics aren't in use.

▪︎Battery Compatibility: Supports all battery types including Flat, Tubular, and SMF with capacities ranging from 80Ah to 250Ah.

▪︎Safety Protections: Built-in alarms and protections against short circuits, overload, over-temperature, and low battery.

▪︎Mains Bypass Switch: Allows for direct power supply from the grid in case of an inverter fault.

》Physical & Warranty Information

▪︎Dimensions: 30 x 47.1 x 45.2 cm.

▪︎Net Weight: 31.5 kg.

▪︎Warranty: 3 Years
