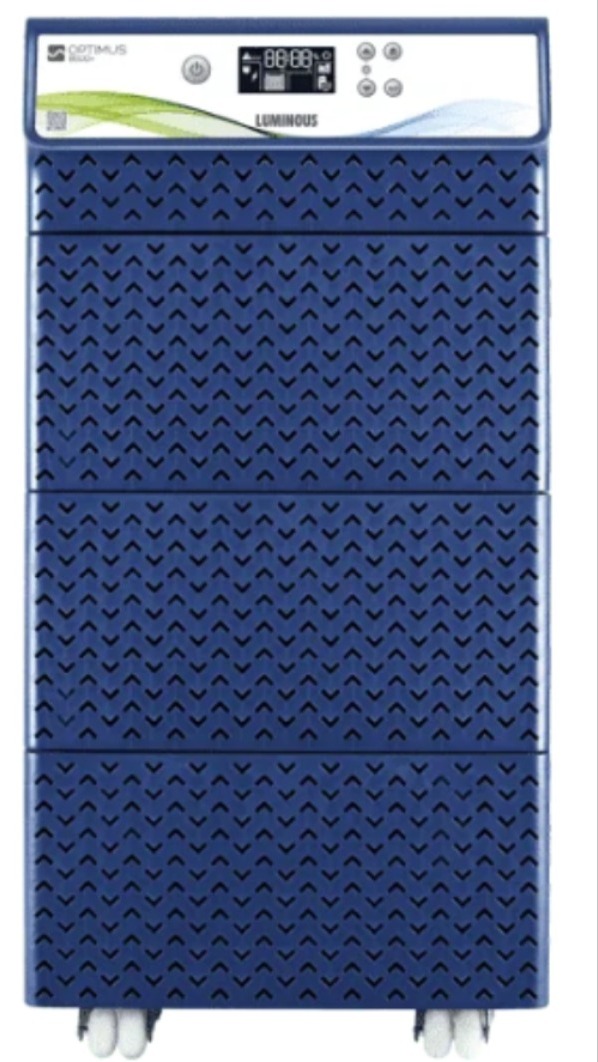

Optimus 6500+ / 72V / 5.5KVA
The Luminous Optimus 6500+ is a high-capacity (HKVA) pure sine wave inverter designed for heavy loads in large residences, offices, or commercial spaces.
》Technical Specifications Overview
▪︎VA Rating: 5500 VA (5.5 KVA)
▪︎Maximum Peak Load: 4400 W (bulb load capacity often cited as 3800 W)
▪︎Battery System: 72V DC (Requires 6 batteries of 12V each)
▪︎Output Voltage: User-settable between 200V – 240V to balance backup time vs. performance
▪︎Technology: Microcontroller-based Pure Sine Wave for safe operation of sensitive electronics.
》Detailed Data Sheet
▪︎Charging Current : User-settable between 8A – 21A for optimized battery life
▪︎Battery Compatibility : Supports Flat, Tubular, and SMF batteries (80Ah – 250Ah)
▪︎Operating Modes : Eco Mode (85V – 290V) and UPS Mode (180V – 265V)
▪︎Change Over Time : <20ms (UPS mode)
▪︎Safety Protections : Short circuit, Overload, Over temperature, Low battery, and Mains MCB protection
▪︎Display LCD showing real-time stats: backup time, charging time, load %, and fault alerts
▪︎Physical Dimensions : 30 x 47.1 x 45.2 cm
▪︎Net Weight Approx. : 31.5 kg
▪︎Warranty : 3Years
》Key Features
▪︎Fast Charging: Begins at low input voltage (95V) and offers fast charging from 135V.
▪︎Mains Bypass Switch: Allows the grid power to pass directly to the load in case of an internal inverter fault.
▪︎Load Capability: Can power heavy appliances like 1.5-ton air conditioners, refrigerators, and multiple office computers.
